P352 – Exit Slit Unit S1 I05 DLS

Application

Exit slit unit for soft X-ray synchrotron radiation

Year of delivery

2012

Installation site

Beamline I05 at Diamond Light Source, Didcot, United Kingdom

Design Features

Performance Features

  • Precision and slit opening repeatability smaller than 100 nm.
  • Parallelism smaller than 1.5 µm over 10 mm edge length.
  • Straightness smaller than 0.5 µm over 10 mm edgle length.
  • Very small deviation (submicrometer) of the slit opening calibration curve from the theoretical non-linear slit opening function.

Outer Dimensions

P352 - Outer dimensions - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH

Technical specifications and performance values

General

Vacuum chamber

Chamber type

cylindrical, horizontal axis

Main flanges

DN160CF cluster flanges

Material

1.4301

Base pressure

10-10 mbar range

Translation along beam axis

Range

± 100 mm

Resolution (design value)

0.015 µm /motor fine step
(1/64, recommended)
0.05 µm /encoder count

Horizontally defining slit (HDS)

Slit blades

Material

OFHC

Straightness

< 0.45 µm over 10 mm (1σ)

Parallelism

0.02 µm /mm
(10 µm slit opening)
0.06 µm /mm
(25 µm slit opening)
-0.006 µm /mm
(50 µm slit opening)

Slit opening

Range

0 µm to 8 mm

Repeatability

± 0.12 µm
(up to 325 µm slit opening)

Resolution (design value)

0.006 µm /motor fine step
(1/16, recommended)
0.05 µm /encoder count

Vertically defining slit (VDS)

Slit blades

Material

OFHC

Straightness

< 0.15 µm over 10 mm (1σ)

Parallelism

-0.08 µm /mm
(10 µm slit opening)
-0.12 µm /mm
(25 µm slit opening)
-0.14 µm /mm
(50 µm slit opening)

Slit opening

Range

0 µm to 8.2 mm

Repeatability

± 0.04 µm
(up to 330 µm slit opening)

Resolution (design value)

0.006 µm /motor fine step
(1/16, recommended)
0.05 µm /encoder count

Performance Test Results

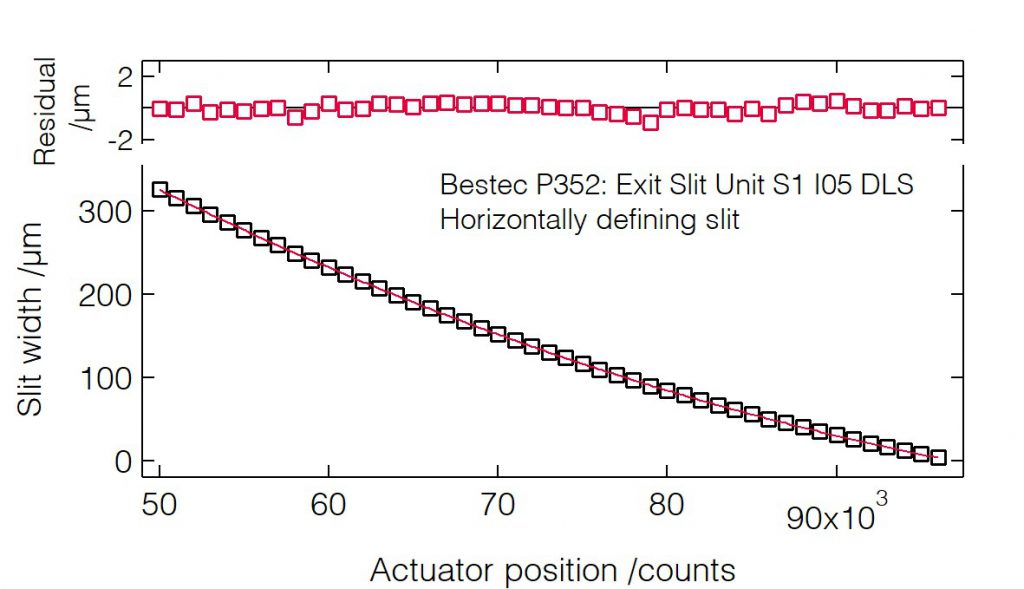

Slit width calibration (HDS)
P352 - Slit width calibration S1 (HDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH

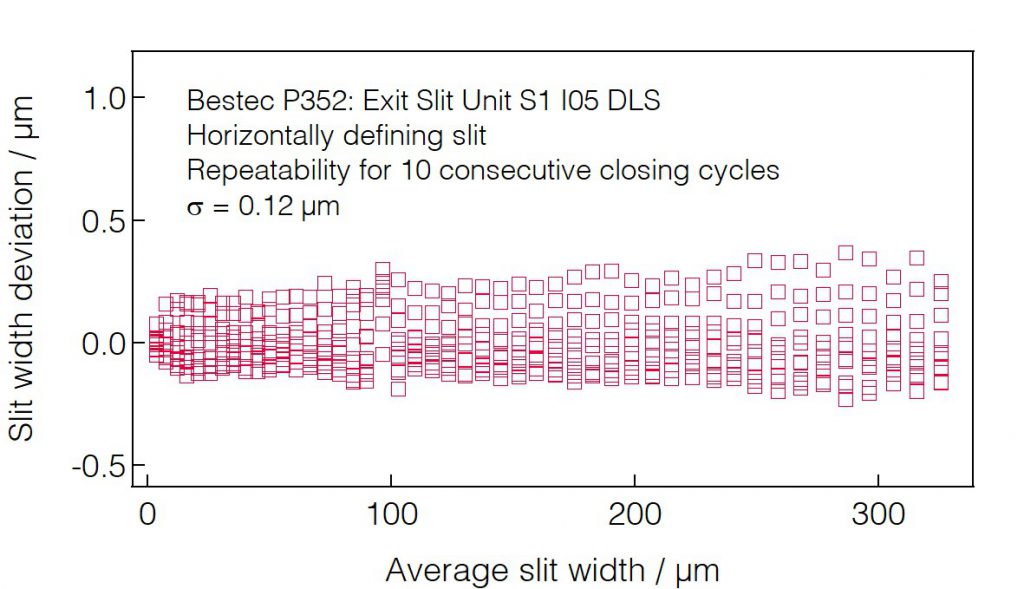

Slit opening repeatability (HDS)
P352 - Slit opening repeatability S1 (HDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH

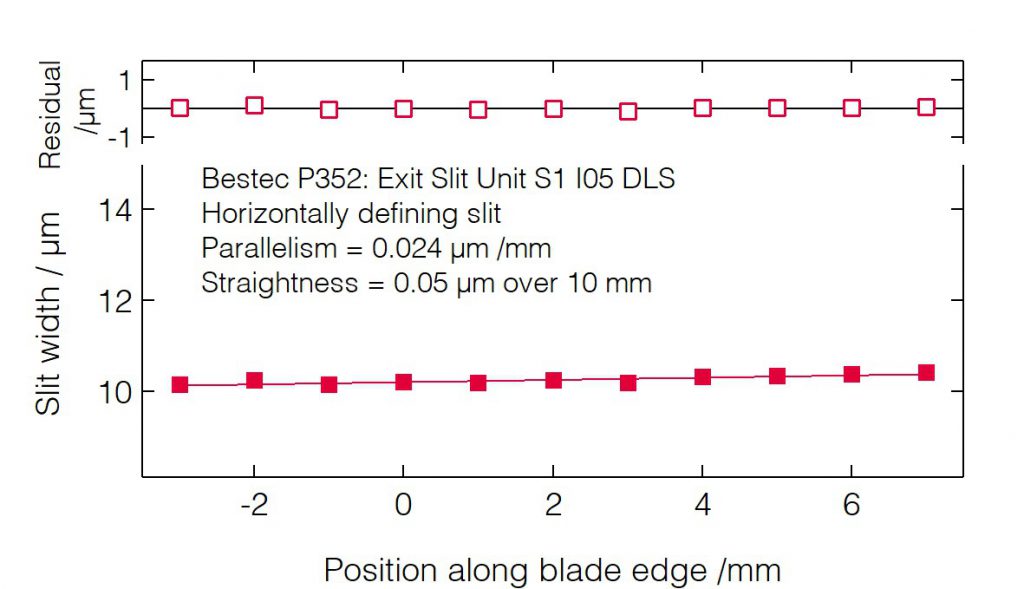

Slit blades parallelism (HDS)
P352 - Slit blades parallelism S1 (HDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH

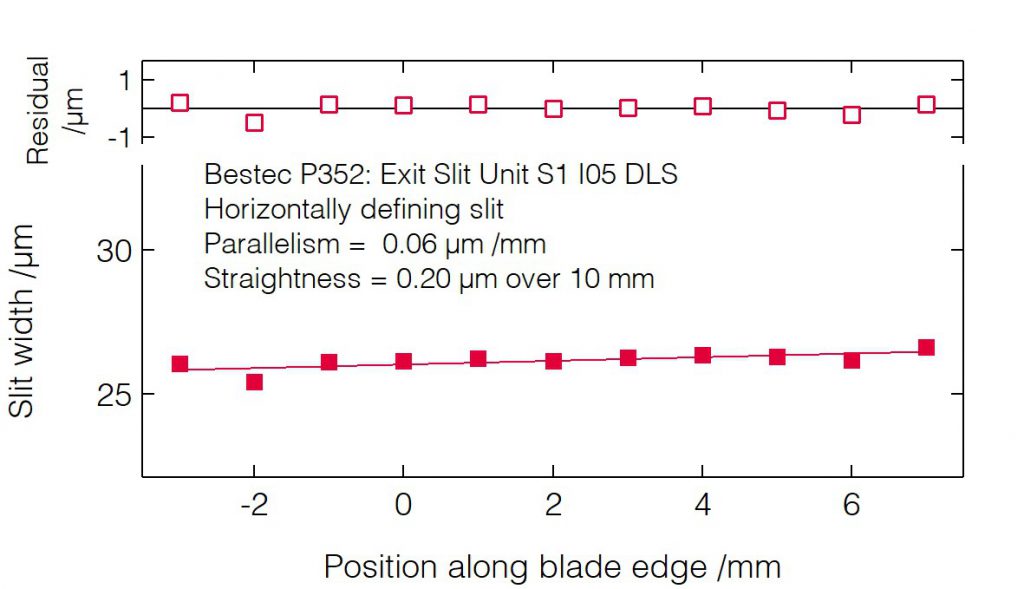

Slit blades parallelism (HDS)
P352 - Slit blades parallelism S1 (HDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH
Slit blades parallelism (HDS)
P352 - Slit blades parallelism S1 (HDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH

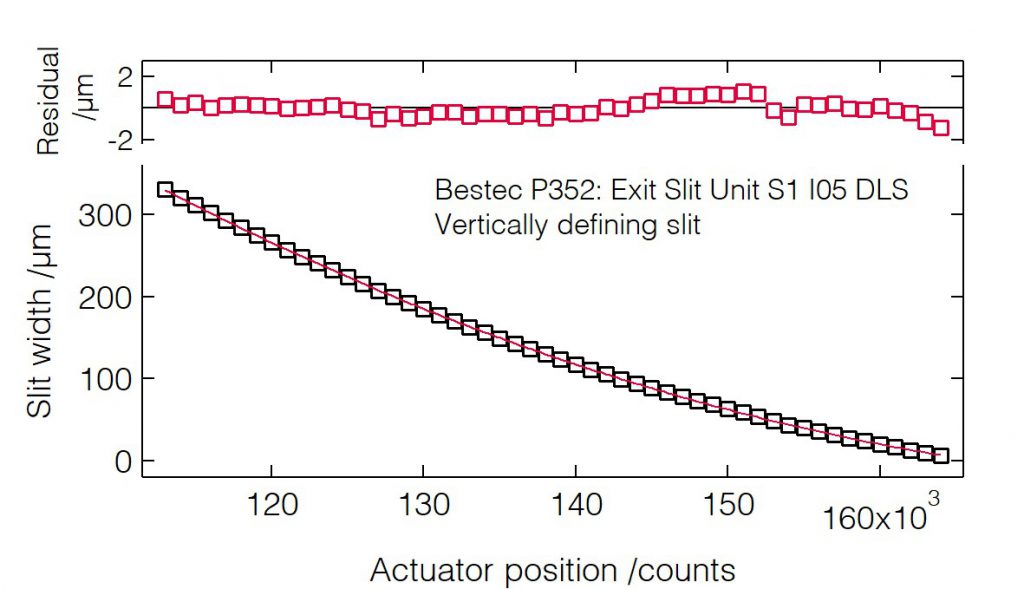

Slit width calibration (VDS)
P352 - Slit blades parallelism S1 (VDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH

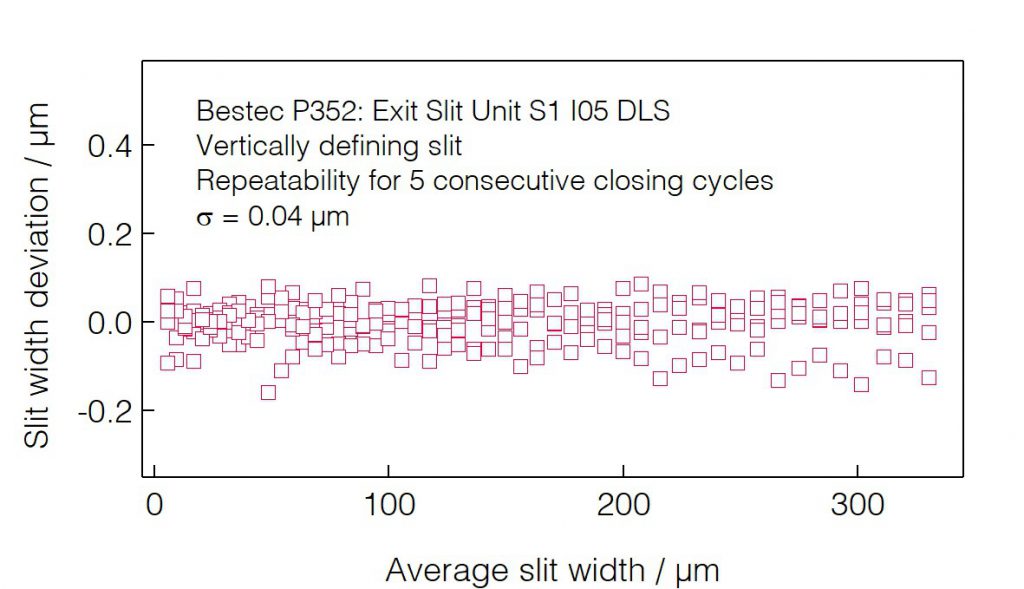

Slit opening repeatability (VDS)
P352 - Slit blades parallelism S1 (VDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH

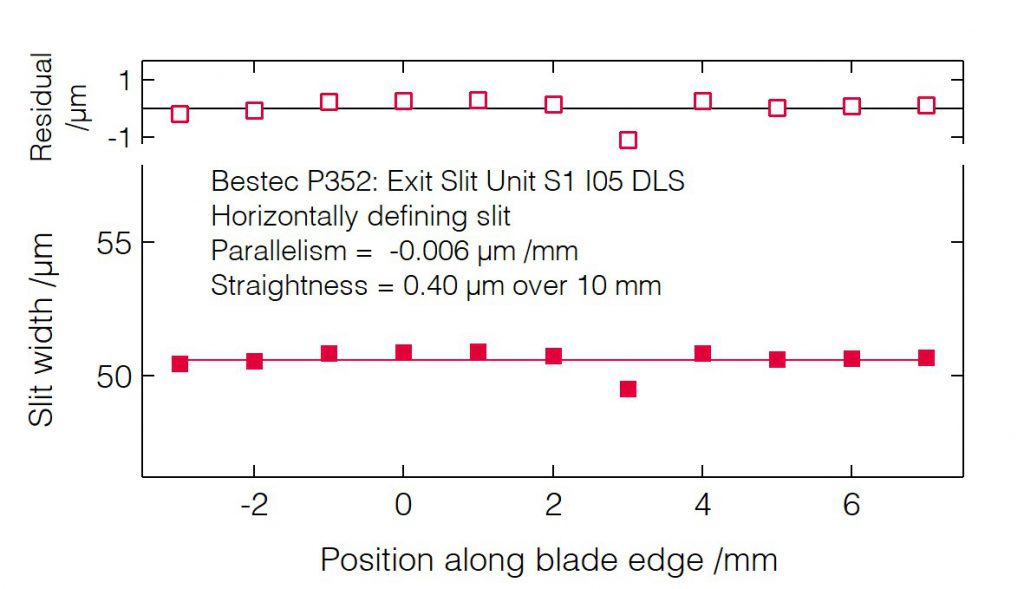

Slit blades parallelism (VDS)
P352 - Slit blades parallelism S1 (VDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH
Slit blades parallelism (VDS)
P352 - Slit blades parallelism S1 (VDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH
Slit blades parallelism (VDS)
P352 - Slit blades parallelism S1 (VDS) - Exit slit unit for soft X-ray synchrotron radiation at Beamline I05 at Diamond Light Source, Didcot, United Kingdom - Bestec GmbH
